UCCE Notes
Table of Contents
Overview
UCCE Components
- Intelligent Contact Manager (ICM)
- contains software components
- router
- logger
- network interface controller
- Administration and Data Server
- peripheral gateway
- ...\
- Desktop/Agent apps
- IVR
- ACD
- PSTN routing
- App databases
- Mgmt info
- Web collab
- Email Mgmt
- Network to desktop Computer Telephony Integration (CTI)
- CUCM
- Cisco Unified Customer Voice Portal (CVP) or Cisco Unified
IP IVR (IP IVR)
Naming Conventions
- Cisco Unified Contact Center Engerprise (CU CCE) models
- CU CCE
- CU CCE 3rd party ACD deployment model, formarly (Unified
Intelligent Contact Management Enterprise (Unified ICME))
- CU CCE Hosted deployment model (formerly known as Unified
Intelligent Contct Mgmt Hosted (Unified ICMH)
- Cisco unified CCE Hosted Deployment model , formerly
known as Unified Contact Center Hosted (unified CCH)
Carrier-Class reliability
- Network Interface Controller, connects to
- Central Controller, connects to
- Peripheral Gateways
Integrated Multichannel Routing
- Integrated voice, web call back web collab, text chat, etc..
Mobile and Home Agents
CUCCE Script Editor
Drag and Drop
Enterprise-Wide Consolidated Reporting
- Monitor agent performance
- Multichannel reporting
- Outbound Option reporting
- Real-time and historical reports
- Single view of enterprise-wide normalized data
- Provides service lvl metrics ancross all media types
- Reporting available using Web View if desired (phased out
in CUCCE 8.5)
- CU Intelligence Center (Standard package) comes standard
with new deployments of CU CCE 8.0
CU Intelligence Center
Automate all of the above in a nice graphical look
Dashboard look at things
Outbound option
- Outbound calls
- Outbound Improvements
- Features
- SIP based dialer
- GW ased answering machine detection
- Multitenant outbound
- Update region table with updated NPA/nXX info
- Benefits
- Increased port capacity per outbound dialer
- improved CUCM scalability by moving call control to voice gws
- reduced server allocation for Hosted customers looking to cohost mjulti CICMs with Campaign Mgr
Cisco Interaction Mgr (CIM)
OEM Product separate from ICM/UCCE- Email interaction mgr
- web interaction mgr
- Integrates CUCCE to provide for commone cofg and reporting
- Email routing and auto response
- Web chat routing and collab
- True blended agent with univeral queue
- Separate Desktop client
IP IVR
- Prompt and collect
- call controlss such as answer term transfer and plcace call
- enterprise db integration
- inbound HTTP-triggered apps
- gen and send outbound email
- voice XML v2.0 support for advanced speech apps
- recorded callers audio input and save and/or uplad as prompts
- Remote Java Infocation (RMI
- CTI integartion with CU CCE
- XML document processing
- MRCP integration to support ASR and TTS svcs
- Auto-eattendant andspoken name upload provice
- real-time and historical reports
CVP
CU Customer Voice Portal
- IP-based svcs
- switching overan IP network
- Take back of acall as needed
- prompt andcollect IVR functions
- ASR and TTS
- integrated with Cisco call routing and Voip prods
- interop with PSTN traditional and SIP trunks
- carrier callss reliability redundancy and scalabilty
- voice xml svcs
- external db int
- reporitng in dedicated db
- web-based oam&p
Agent Desktop Options
- Cisco Toolkit Desktop (CTI) - has a agent/supervisor sample desktop
- Cisco Agent Desktop (CAD)
- Cisco Agent Desktop Browser Edition
- IP Phone Agent
- Pre-integrated CRM desktops (3rd party)
Cisco Contact Center Mgmt Portal
Remote Silent Monitoring Option
- no 7940, 7960, 7970, 791x
- for use by outsourcers, remote supervisors, and external auditors
- silent montioring by any agent, basec on cfg
- Uses CU IP IVR or CU CVP scripts for inbound supervisor access and authentication
- BBundled with all CU CCE agent licenses
- Supports most new-generaltion pones and Cisco IP Communicator
PPDIOO
- Prepare
- Plan
- Design
- Implement
- Operate
- Optimize
Call Routing Options
- Carrier Based routing
- Private Network Routing
- Intelligent Contact Mgmt (Where are the skill, who is available)
- Carrier holds call, send route request (e.g. with DNIS/ANI)
- Cisco does this with ICM Central Controller and ICM Peripheral Gateway
ICM Components
- Network Interface Controller (for Pre-Route)
- Router
- Side A and B Synchronized
- Knows everything going on in network
- runs all routing scripts
- Logger
- Side A and Side B synchronized
- Rogger - combo Router/Logger
- Progger - combo Periheral GW, Router, Logger
- Sprawler - combo Peripheral GW, Router, Logger, Admin GW, CTI
- CCDB has list ofallscript,logs, etc
- Cfg info
- Scripts
- Historical Data
- sys events
- AWDB
- copy of real-time data
- copy of cfg info and scripts
- HDS -Historical and call detail data
- WVDB - report templates
- Peripheral GW - Universal translator
- Translates to back end Peripheral
- Knows about skill groups
- Supervisor Desktop talks to Peripheral GW
- Admin and Data server (Distributer Admin Workstation AW) used to
- create and modify ICM config
- Create and modify ICM scripts
- Monitor ICM scripts and real-time data
- monitor icm scripts and real-time data
- maintain rela-time ahnd historical dat for reporting
- provide a real-time feed and db info to admin clients
- talks to Router toseem how many calls are coming through
- Admin Client Workstation (AW) can run separately
- Scripting can be configured remotely
Adding a new contact Center
Add another PG (any time you have another device to communicate with)
ICM Terms
- Trunk Group -> ACD -> Svc ->Skill Group
- Carrier
-> ICM -> MRD / DN/ ANI / CED -> Call TYpe ->Schedule
->Script ->Skill Target ->Route -> Periphseral Target ->
Label ->ICM
- Carrier-> ICM -> PG and CTI Server
- Routing Client - anything able to move a call (including CM)
- In every route request, there has to be at least a Dialed Number (DNIS)
- Media Routing Domain (Default routing domain is Voice)
- Dialed Number
- ANI (optional)
- Caller entered digits (optional)
- Call Type - MRD, DN, ANI, and CED correlate to a call type
- Routing Scripts - routing calls
- Admin Scripts - perform background processing and are scheduled to run at specifided time intervals
- Skill Target
- Route (to get there)
- Peripheral Target (where call ends up on)
* communicates with Peripheral GW talking to CM to get on/off hook

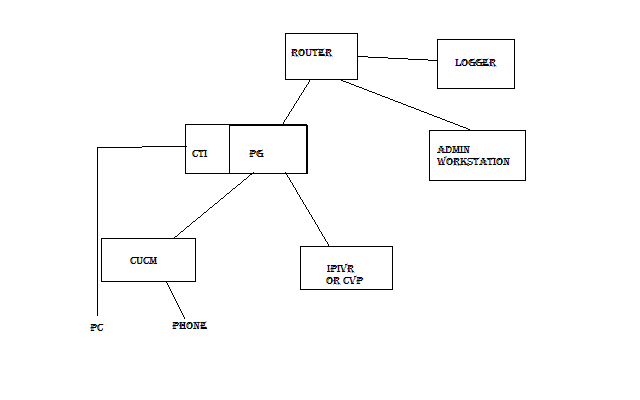

Basic Architecture
![UCCE Basic Architecure](UCCEBasicArchitecture.PNG)
- ICM is made up of PG, Router, Logger, Admin Workstation
- Call Control is Router, Logger
- CCX Editor edits things on IPIVR
- Internet Script Editor edits things on router
Configuration
Standard Deployment
ICM -> CM PG -> CUCM
ICM -> VRU PG -> IPIVR
Parent Child
ICM -> IPCC Enterprise GWPG -> CUCCE via System PG
ICM -> IPCC Express GW PG -> CUCC Express
Auto Cfg - anything that happens in sub system auto populates up
Preroute
Postroute
Likely what we have
- Call in
pass cal go GW
pass calltocucm
call(including NISgoestoIP IVR
CVP
call->Ingress GW -> CVP -> CVP PG ->ICM CC->CMPG CTI Server CTIOS -> CM
CVP can be distributed, IVR cannot
CVP can transfer call directly to CM
CUCM
CTI Ports
- logical endpoint that can accept a voice data stream
- physical presences is typically on a server
- CU IIVR uses CTI ports to connect calls so that you may then interact with the caller for IVR and/or ACD purposes
CTI Routepoints
- Phantom #s that forward somewhere else
- Pointer to an external application
- could be a CTI Port
- can hold on to call until it figures out where it's supposed to go
If we route to ICM, than create a routepoint
Create App user for IP IVR
Create App user for PG for CM
Super Factory Reset - copy to phone cheatsheet
- Takes down to base firmware - make sure to have TFTP server local
- Hold down pound key
- 3491672850*#
IP IVR
- Basic and Advanced IVR ports (licenses per port)
- Prompt and collect
- Call controls such as answer, terminate, transfer,and place call
- HA (add license required)
- Enterprise db integration via JDBC
- Inbound HTTP triggered applications
- Generage and send outbound email
- Voice XML v2.0 support for advanced speech apps
- Record callers audio input and save/upload as prompts
- Remote Method Invocation (RMI)
- CTI integration with Cisco Unified CCE and ICM
- XML document processing
- MRCP integration to support ASR and TTS services
- Auto Attendant and Spoken Name Upload provided
- Real-time and historical reports
Script Editor (IP IVR)
Start > Programs > Cisco > Unified CCX Editor_<ver> > Cisco Unified CCX Editor
- Steps are Java Beans so are customizable
- Download from IP IVR > Plugins page
- Remember to Synchronize License with icons you should have access to.
Prompt Mgmt
Applications > Prompt Mgmt
Script Mgmt
Applications >ScriptMgmt
Integration Overview
- JTAPI Provider for Call Control
- CTI Ports
- Dialog Groups used to allocate DTMF or auto speech rec resources
- Prompt and scripts to provide for caller interaction
- Triggers applications used to proivide physical call setup resources and method of selecting script
- Use ICM subsystem to declare PGs for integration and declare Cisco Unified IP IvR scipts for use by the ICM system
Unified CM Telephony Provider
Configure CMs that will be used for JTAPI (?)
Basic configuration
- Call Control Group IP IVR version of CTI Ports on Call Manager
- Media Termination Dialog Groups - what is default method for their input
- Application script
- Cisco ICM Postrouting Application (configure to run the application script you created)
- Translation Routing Application
- Triggers - 1st point i of entry to IP IVR for call control - triggers Post Routing application
ICM Subsystem
- used to setup communications to ICM VRU PG
- Declare scripts on Cisco Unified IP IVR that will be available for use by the ICM script
- Specify VRU conn port, PG Acccess, Svc Ctrl
- Every script that we expect to run needs a mapping (what is called vs. actual script name)
Postroute Call Flow
CM->RP->Trigger on IP IVR-> Post route to ICM
CVP
Customer Voice Portal
- IP based IVR with caller using VXML
- Advancedcall queuing while waiting for an agent
- Call Switching capabilities across an IP network
- loigical migration path frmo legacy to Cisco Unified Communications
- Web based mgmt and admin
- Real-time and hsitorical reporting
- maintains Informix db with info received from call server and VXML
- Ops console (web based int to OAM&P
- VXML Svr - executes IVR apps yby exchanging VXML pages with voice browser no voice gateway
- Cisco Unified Call Studio - Graphical tool used to create VXML-based applciations that are executed by the VXML server
- Use to get call control at network edge
Additional servers
- Cisco Unified Presence
- CUBE
- ICM Enterprise
- Media Servers
- ASR / TTS servers
Deployment models
- Standalone
- Call Director
- Comprehensive -Self service apps,call direction, queuing, call routing, transfer
- VRU
ICME Scripting Overview (Microapps)
CVP Guides
ICM Scripting Guide, cover Microapps
UCCE Cfg
- ICM Service Control Panel
- Unified CCE Tools
- Admin Tools
- Call Tracer
- Check Routes
- Config Mgr
- Initialize Local DB - copy db to local copy
- Lock Admin - find who currently holds locks, acquire lock, release lock
- Router Log Viewer
- Scheduled Target - when you go to something you don't monitor
- Schema Help
- Script Editor
- Select Administration Instance (only used in hosted environment)
- Unified CCE Web Setup
Configuration Mgr
- Configure ICM (similar to next 2)
- Tools (use this)
- Step by Step Configuration (similar to last 2)
- Outbound Option
Preferences - Retrieve can auto be enabled, but not recommended
Basic Configuration steps 1
- Agent Desk Settings
- Network VRU
- Peripheral Gateway
- Peripheral for CUCM and IPIVR
- Network Trunk Group for CUCM
- Trunk Group for CUCM
- Network Trunk Group for IP IVR
- Trunk Group for IP IVR
- Skill Group and Skill Target
- Route
- Agent
- Device Target
- Label (for target)
- Dialed #
- Call Type
- Network VRU Scripts
Agent Desktop Options
CTI Server
- Screen pop integration
- 3rd party call control
- Agent state control
CTI OS
connects to Desktop
- Allows for customized application/TI interaction
- Answer Release Hold Retrieve Transfer Conference Make call Aleternate Reconnect
- Agent - Login Logout Ready Not Ready Wrap up
- There is a CTI Toolkit Agent Desktop and Supervisor Desktop
- Supervisor has to be an agent in order to barge in, etc. Does not have to be in a skill group (by default, take calls...)
- CRM Connectors to SP, Siebel, Salesforce.com, Microsoft Dynamics CRM, PeopleSoft, etc...
- Consultants to build CRM Connectors that are EOL
Script Editor
- Routing script (do something/choose destinationfor a call)
- Admin script (do something daily/nightly)
- Modes
- Edit- Blue
- Browse - Brown
- Quick Edit - Gray
- Palette can dock top bottom right left
- General
- Routing
- Targets
- Queue - Queue icon is actually Queue to skill group
- Nodes have connection terminals to connect to other nodes
- Display Node IDs to show #s
- Display Monitor Labels (auto show up in monitor mode)
- Don't forget to 'Validate' the script (is everything technically filled in correctly)
- By default will maintain infinite # of versions of script. Can reset via System Settings(?).
- After saving and activating, schedule it.
- Script > Call Type Manager
- Choose Dialed Number and click Add
- Dialed # maps to call type which maps to schedule which goes to script
- recommend to not use schedule here (do it in script)
Call Tracer
doesn't know when call moves from one peripheral
Will show up in route trace, but won't generate CDR.
Script Explorer
Default Label
is default route if dialed number doesn't end up with a route/destinationVariables
- CLID
- CED (caller entered digits)
- PV1-10 (preconfigured vars - 40 bytes each)
- set in set script node in script editor
- Expanded Call Context Vars - user defined, must be enabled, 2000 bytes available total, associated with call object type
- enable in System Information (Configuration
- User
Vars - user defined, 40bytes each, associated with other types of
objects such as service,skill group, perphereral, etc. Not
associated with call object
External Database Access
DB Schema
- Customer_DB (Database)
- Customer (Table)
- ANI varchar 4 not null, Acct_Number varchar 5 not null, Acct_Type varchar 10 not nul (columns)
Lookups
- DB Lookup node
- IF Node to test data retrieved by DB lookup
- Read only
- Authentication is stored in clear text on Router
- dbworker process looks things up
- db_lookup_Explerer - path syntax \\MachName\DBName.TableName
- no debugging in script
- this external db lookup is from Router, you can separately do external db lookups on IPIVR or CVP.
Admin Scripts and Translation Routing
Admin Scripts
- Used for'follow the sun' routing
- holiday schedules
- peak periods routing
- outbound
- emergency
- Nodes are brown
- Most stuff available in palette is in general only
- Time can have mulitple outputs for different time ranges
- Run admin scripts every minute
Time is based on router logger server...don't change or you mess up logger...use switch node to fake time decisions
Translation Routing
method that ICM uses to keep track of call
goal to send call to location and have ability to reacquire knowledge of it and track it
adjunct route request - post-route translation request
- temporary DNIS IDs
- node 'Translation Route to VRU' -
- grabs temp DNIS
- Send back to CM when agent avail
Tranlastion Route Wizard
- Requirement
- IPIVR
- PG
- Net Trunk groups and trk groups
- agent groups
- device targets and labels for agents
- DNs
- Call Types
Services used as dummy placeholder to target to
IPIVR
Call Control Group
Tranlsation route app
triggers for translation route application (Creates route point on CM)New Peripheral
- new peripheral (required)
- new network turnk group and trunk group (required)
- new skill groups (required)
- new agent (required)
- new agent targeting rule (required)
- new application user account (required)
- new dialed numbers (Configure ICM/Calls/Dialed Number
- new call types
- new route points
- associated route points to application user account
- new routing script
- schedule via Call Type Manager (remember to hit both Call Directory and Schedules tab)
Debug
Router Logger
Call Tracer (from Script Editor)
Enterprise Services and Skill Groups
- Skill group can be associated with more than 1 Enterprise Service
Outbound Options
allows agent to participate in outbound campaings and inbound calls through SCCP / SIP software dialer
- call progress analysis (tone detection) for answering machines, fac, and modems
- centralized mgmt vi admin / data svr
- enterprise-wide outbound dialing
- transfer to IVR campaigns
- Cisco Unified CVP
- Cisco IP IVR
...Terms
- Import Rule
- Do not call imports
- contact list
- query rule
- campaigns
- dialing lists
- callbaciks
- xfer to IVR campaigns
- sequential dialing
- blended campaigns
Dialing Modes
- Preview mode - agentt manually accepts, regjects or skips customer calls
- Direct Preview mode, allows agent to hear the call ring-out from desktop
- progressive mode - uses a fixed # of lines to dial per agent
- predictive mode - dynamically calcs number of lines to dial per agent
- personal callback mode
SIP is better than SCCP for dialer options
Architecture SCCP
Architecture SIP
